0.6/1KV HTC-RP2 / HTC-RP3 / HTC-FP2 / HTC-FP3 Travelling Cable

What is 0.6/1KV HTC-RP2 Travelling Cable？

0.6/1KV HTC-RP2, HTC-RP3, HTC-FP2, HTC-FP3 is a kind of travelling cable, these cables are designed for use with reel systems in various industrial settings, such as transport machinery and loading equipment. They supply power and control signals to moving machinery, requiring mechanical durability against impacts, abrasion and bending, alongside chemical resistance to oil, water and heat.

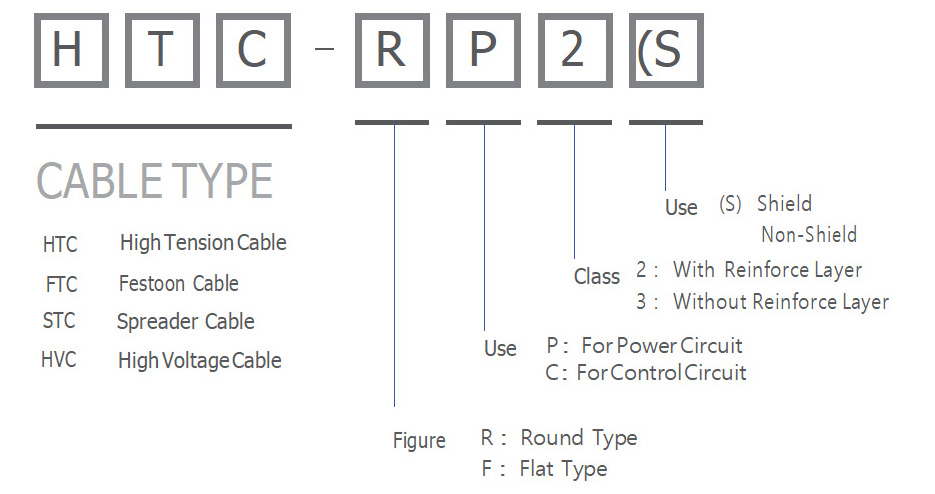

What Does HTC-RP2 Cable Meaning

HTC-RP2 cable Condition

Rated voltage	600V, 0.6/1kV, 3.3kV, 3.6kV/6kV, 6. 6kV, 6/10kV, etc.
Type designation	HTC-RP 2, HTC-RP 3,HTC-FP 2,HTC-FP 3, etc.
Size	No. of cores X Conductor nominal area
Overall diameter	If necessary, Specify max. overall diameter.
Length	Total length, Unit length
Site	Steel works, Port, Power station, etc.
Machinery	Stacker, Reclaimer, Unloader, etc.
Max. Tension	Pulling tension
Movement	Distance, Speed, Time, etc
Spec. of reel	Dimensions, Torque, etc.

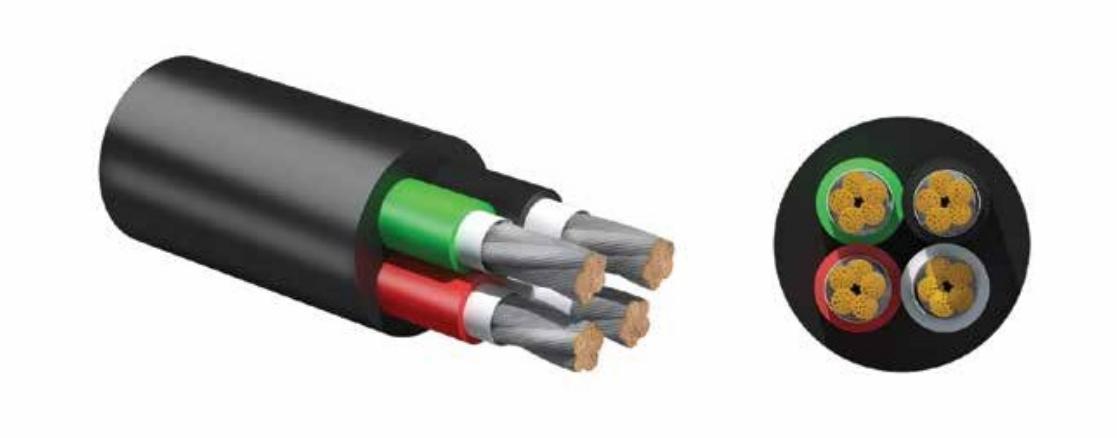

0.6/1kV HTC-RP2 Cable Specification

Conductor			Thickness Of Insula- tion	3 Cores			4 Cores			Conductor- resistance (20°C)	Insulation Resistance (20°C)	Test Voltage
Nominal Cross	Maximim Dimeter of Wires in Conductor	Approx. Outer Diameter		Thickness Of Sheath	Overall Diame- ter(approx.)	Weight (approx.)	Thickness Of Sheath	Overall Diame- ter(approx.)	Weight (approx.)
㎟	Max./mm	㎜	㎜	㎜	㎜	kg/km	㎜	㎜	kg/km	Ω/km	MΩ.km	V/5min
10	0.41	4.8	1.2	2.9	15.0 x 30.5	780	3	15.0 x 41.0	1070	1.95	400	3500
16	0.41	6	1.6	3.2	17.5 x 37.5	1140	3.4	18.0 x 51.0	1580	1.24	400	3500
25	0.41	7.4	1.6	3.4	19.5 x 42.0	1520	3.6	20.0 x 57.0	2100	0.795	400	3500
35	0.41	8.7	1.6	3.6	21.0 x 46.0	1920	3.8	21.5 x 62.0	2630	0.565	400	3500
50	0.41	10.4	2.1	4	24.5 x 55.0	2670	4.2	25.0 x 73.0	3660	0.393	400	3500
70	0.51	12.5	2.1	4.2	27.0 x 61.0	3460	4.5	27.5 x 82.0	4740	0.277	400	3500
95	0.51	14.5	2.1	4.5	29.5 x 68.0	4400	4.9	30.5 x 91.0	6030	0.21	400	3500
120	0.51	16.2	2.7	5	33.5 x 78.0	5660	5.3	34.0 x 103	7710	0.164	400	3500
150	0.51	18.2	2.7	5.2	36.0 x 84.0	6770	5.6	36.5 x 113.5	9350	0.132	400	3500
185	0.51	20.2	3.3	5.7	40.0 x 94.0	8480	6.1	41.0 x 127.0	11660	0.108	400	3500
240	0.51	23.3	3.3	6.1	44.0 x 104.0	10690	6.6	45.0 x 135.0	14380	0.0817	400	3500
300	0.51	26	3.3	6.5	47.5 x 112.5	12890	-	-	-	0.0654	400	3500

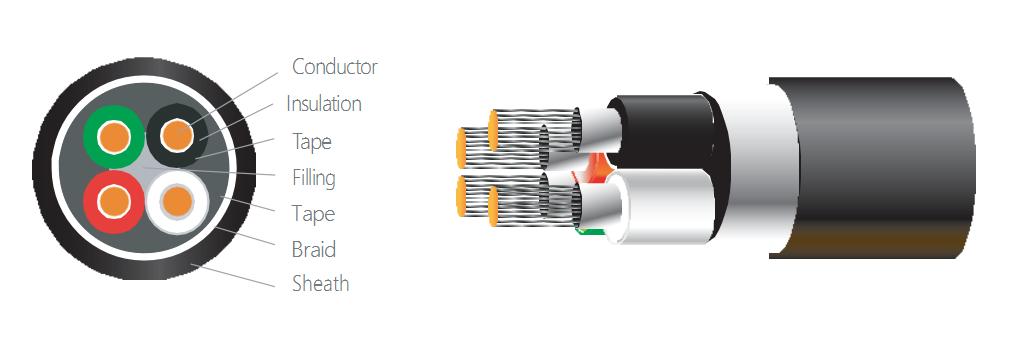

0.6/1kV HTC-RP3 Cable Specification

Conductor			Thickness Of Insula- tion	3 Cores			4 Cores			Conductor- resistance (20°C)	Insulation Resistance (20°C)	Test Voltage
Nominal Cross	Maximim Dimeter of Wires in Conductor	Approx. Outer Diameter		Thickness Of Sheath	Overall Diame- ter(approx.)	Weight (approx.)	Thickness Of Sheath	Overall Diame- ter(approx.)	Weight (approx.)
㎟	Max./mm	㎜	㎜	㎜	㎜	kg/km	㎜	㎜	kg/km	Ω/km	MΩ.km	V/5min
6	0.31	3.6	1.2	3.1	22	640	3.3	24	780	3.39	400	3500
10	0.41	4.8	1.2	3.3	25	890	3.5	27	1100	1.95	300	3500
16	0.41	6	1.6	3.6	30	1280	3.8	32	1600	1.24	300	3500
25	0.41	7.4	1.6	3.8	33	1710	4	36	2130	0.795	300	3500
35	0.41	8.7	1.6	4	36	2140	4.2	40	2680	0.565	200	3500
50	0.41	10.4	2.1	4.4	43	3000	4.6	47	3770	0.393	200	3500
70	0.51	12.5	2.1	4.6	47	3870	4.9	52	4900	0.277	200	3500
95	0.51	14.5	2.1	4.9	52	4910	5.3	58	6260	0.21	200	3500
120	0.51	16.2	2.7	5.3	59	6280	5.7	66	8010	0.164	200	3500
150	0.51	18.2	2.7	5.6	64	7560	6	71	9650	0.132	200	3500
185	0.51	20.2	3.3	6.1	72	9450	6.5	79	12030	0.108	200	3500
240	0.51	23.3	3.3	6.5	79	11900	7	88	15220	0.0817	200	3500
300	0.51	26	3.3	6.9	85	14310	7.4	95	18320	0.0654	200	3500

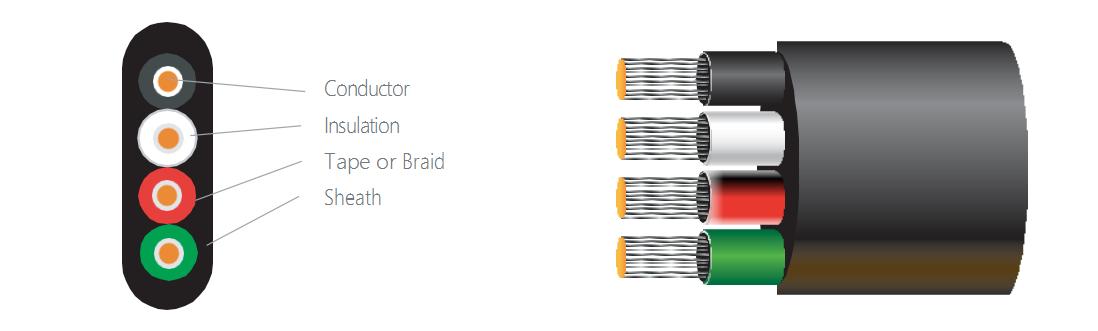

0.6/1kV HTC-FP2 Cable Specification

Conductor			Thickness Of Insula- tion	3 Cores			4 Cores			Conductor- resistance (20°C)	Insulation Resistance (20°C)	Test Voltage
Nominal Cross	Maximim Dimeter of Wires in Conductor	Approx. Outer Diameter		Thickness Of Sheath	Overall Diame- ter(approx.)	Weight (approx.)	Thickness Of Sheath	Overall Diame- ter(approx.)	Weight (approx.)
㎟	Max./mm	㎜	㎜	㎜	㎜	kg/km	㎜	㎜	kg/km	Ω/km	MΩ.km	V/5min
10	0.41	4.8	1.1	2.1	13.0 x 28.0	670	2.1	12.5 x 35.0	870	1.95	300	3500
16	0.41	6	1.2	2.3	15.0 x 33.0	930	2.5	15.0 x 45.0	1300	1.24	300	3500
25	0.41	7.4	1.2	2.5	17.5 x 37.0	1290	2.7	17.0 x 51.0	1790	0.795	300	3500
35	0.41	8.7	1.2	2.7	18.0 x 41.0	1650	2.9	18.5 x 56.5	2290	0.565	200	3500
50	0.41	10.4	1.5	3	21.0 x 49.0	2290	3.2	21.5 x 66.5	3160	0.393	200	3500
70	0.51	12.5	2	3.4	25.0 x 58.0	3250	3.7	25.5 x 79.0	4470	0.277	200	3500
95	0.51	14.5	2	3.7	27.5 x 65.0	4170	4	28.0 x 88.0	5720	0.21	200	3500
120	0.51	16.2	2	4	30.0 x 71.0	5090	4.3	30.5 x 95.5	6980	0.164	200	3500
150	0.51	18.2	2	4.2	32.0 x 77.0	6150	4.6	33.0 x 103.5	8450	0.132	200	3500
185	0.51	20.2	2.5	4.6	36.0 x 87.0	7710	5.1	37.0 x 118.0	10690	0.108	200	3500
240	0.51	23.3	2.5	5.1	40.0 x 97.0	9900	5.6	41.0 x 131.0	13650	0.0817	200	3500
300	0.51	26	2.5	5.4	43.5 x 105.0	11990	-	-	-	0.0654	200	3500

0.6/1kV HTC-FP3 Cable Specification

Conductor			Thickness Of Insula- tion	3 Cores			4 Cores			Conductor- resistance (20°C)	Insulation Resistance (20°C)	Test Voltage
Nominal Cross	Maximim Dimeter of Wires in Conductor	Approx. Outer Diameter		Thickness Of Sheath	Overall Diame- ter(approx.)	Weight (approx.)	Thickness Of Sheath	Overall Diame- ter(approx.)	Weight (approx.)
㎟	Max./mm	㎜	㎜	㎜	㎜	kg/km	㎜	㎜	kg/km	Ω/km	MΩ.km	V/5min
10	0.41	4.8	1.2	2.9	15.0 x 30.5	780	3	15.0 x 41.0	1070	1.95	400	3500
16	0.41	6	1.6	3.2	17.5 x 37.5	1140	3.4	18.0 x 51.0	1580	1.24	400	3500
25	0.41	7.4	1.6	3.4	19.5 x 42.0	1520	3.6	20.0 x 57.0	2100	0.795	400	3500
35	0.41	8.7	1.6	3.6	21.0 x 46.0	1920	3.8	21.5 x 62.0	2630	0.565	400	3500
50	0.41	10.4	2.1	4	24.5 x 55.0	2670	4.2	25.0 x 73.0	3660	0.393	400	3500
70	0.51	12.5	2.1	4.2	27.0 x 61.0	3460	4.5	27.5 x 82.0	4740	0.277	400	3500
95	0.51	14.5	2.1	4.5	29.5 x 68.0	4400	4.9	30.5 x 91.0	6030	0.21	400	3500
120	0.51	16.2	2.7	5	33.5 x 78.0	5660	5.3	34.0 x 103	7710	0.164	400	3500
150	0.51	18.2	2.7	5.2	36.0 x 84.0	6770	5.6	36.5 x 113.5	9350	0.132	400	3500
185	0.51	20.2	3.3	5.7	40.0 x 94.0	8480	6.1	41.0 x 127.0	11660	0.108	400	3500
240	0.51	23.3	3.3	6.1	44.0 x 104.0	10690	6.6	45.0 x 135.0	14380	0.0817	400	3500
300	0.51	26	3.3	6.5	47.5 x 112.5	12890	-	-	-	0.0654	400	3500
