450/750V KGG/KGGRP/KGGP Silicone Rubber Control Cable

What is KGGRP Cable?

Silicone rubber control cables KGG/KGGRP/KGGP are widely used in high-temperature industrial sectors such as power generation, petrochemical plants, steel mills, smelting plants, power stations, coking plants, aviation, electronics, shipbuilding, ports, and automotive manufacturing. They provide electrical connections between mobile electrical equipment. They are equally suitable for control, lighting, communication lines, and monitoring circuits requiring high-temperature resistance or other special conditions, with a rated voltage of 450/750V or below. Silicone rubber control cables exhibit outstanding high-temperature tolerance, flame retardancy, radiation resistance, aging resistance, ozone resistance, and water resistance, along with excellent cold resistance and weather resistance.

The Different Between KGG/KGGRP/KGGP

Model	Name	Use range
KGG	Copper core silicone rubber insulated silicone rubber sheathed control cable	Laying indoors, cable trenches, pipe fixing occasions
KGGP	Copper core silicone rubber insulated silicone rubber sheath braided shielded control cable	Laying in indoor, cable trenches, pipes, etc.
KGGP2	Copper core silicone rubber insulated silicon rubber sheathed copper tape shielded control cable	Laying in indoor, cable trenches, pipes, etc.
KGG22	Copper core silicone rubber insulated silicon rubber sheathed steel strip shielded control cable	Laying in indoors, cable trenches, pipes, direct burial, etc. can withstand large mechanical tension and other fixed occasions
KGG32	Copper core silicone rubber insulated silicon rubber sheathed thin steel wire armored control cable	Laying in indoors, cable trenches, pipes, shafts, etc. can withstand large mechanical tension and other fixed occasions
KGGR	Copper core silicone rubber insulated silicone rubber sheathed control flexible cable	Laying in indoors where soft movement is required
KGGRP	Copper core silicone rubber insulated silicon rubber sheath braided shield control flexible cable	Laying in indoors requires soft, shielding, etc.

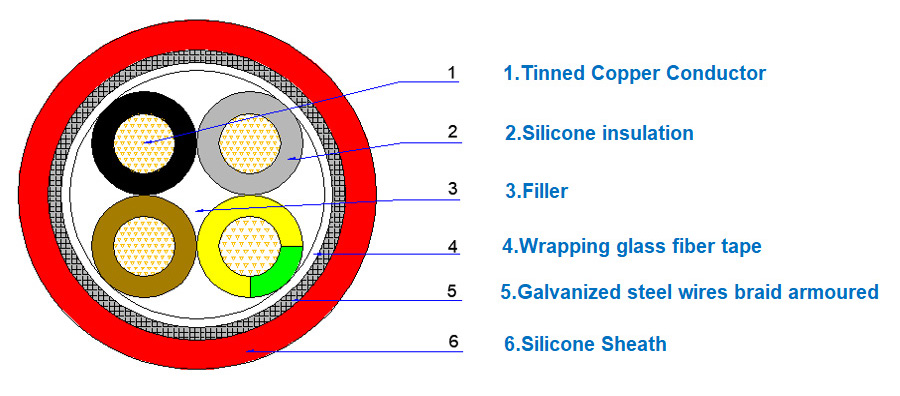

KGGRP Silicone Rubber Cable Construction

Conductor	Class 5 tinned flexible copper conductor
Insulation	Silicone rubber
Filling	High-temperature filling cord
Wrapping tape	Wrapping glass fiber tape
Shielding	Galvanized steel wires braid armoured
Outer sheath	Silicone rubber
Conductor Identification	2-core: Brown Blue 3-core: Brown Blue Yellow/Green 4-core: Brown Blue Black Yellow/Green 5-core:Brown Blue Black Black Yellow/Green

KGGRP Silicone Rubber Cable Specifications

Number of Conductors	Specification	Insulation Thickness	Braided Wire Diameter	Sheath thickness	Approximate finished outer diameter	Approximate cable weight
	mm2	mm	mm	mm	mm	kg/km
2	0.5	0.7	0.15	1.4	9.1	117.6
2	0.75	0.7	0.15	1.4	9.6	131.3
2	1	0.7	0.15	1.4	9.9	143.4
2	1.5	0.8	0.15	1.4	10.9	176.3
2	2.5	0.8	0.15	1.4	11.8	216.8
2	4	0.8	0.15	1.5	13.1	280.2
2	6	0.9	0.2	1.5	15.4	395.7
2	10	0.9	0.2	1.5	18	557.2
3	0.5	0.7	0.15	1.4	9.5	129.7
3	0.75	0.7	0.15	1.4	10	146.2
3	1	0.7	0.15	1.4	10.3	161.2
3	1.5	0.8	0.15	1.4	11.4	200.5
3	2.5	0.8	0.15	1.4	12.3	251.2
3	4	0.8	0.15	1.5	13.8	330
3	6	0.9	0.2	1.5	16.2	468.3
3	10	0.9	0.2	1.7	19.4	686.7
4	0.5	0.7	0.15	1.4	10.1	148.6
4	0.75	0.7	0.15	1.4	10.6	169.2
4	1	0.7	0.15	1.4	11.1	187.6
4	1.5	0.8	0.15	1.4	12.2	236.3
4	2.5	0.8	0.15	1.5	13.5	306.5
4	4	0.8	0.2	1.5	15.1	413.8
4	6	0.9	0.2	1.5	17.6	567.5
4	10	0.9	0.2	1.7	21.2	838.6
5	0.5	0.7	0.15	1.4	10.8	170.3
5	0.75	0.7	0.15	1.4	11.4	195.1
5	1	0.7	0.15	1.4	11.8	217.6
5	1.5	0.8	0.15	1.5	13.3	283.3
5	2.5	0.8	0.2	1.5	14.8	377.1
5	4	0.8	0.2	1.5	16.3	490.9
5	6	0.9	0.2	1.7	19.5	698.1
5	10	0.9	0.2	1.7	23.1	1008.7
6	0.5	0.7	0.15	1.4	11.5	194.3
6	0.75	0.7	0.15	1.4	12.2	223.7
6	1	0.7	0.15	1.4	12.7	250.4
6	1.5	0.8	0.2	1.5	14.5	343
6	2.5	0.8	0.2	1.5	15.9	438.5
6	4	0.8	0.2	1.5	17.6	574.4
6	6	0.9	0.2	1.7	21.1	820.6
6	10	0.9	0.25	1.7	25.3	1221.9
7	0.5	0.7	0.15	1.4	11.5	197.2
7	0.75	0.7	0.15	1.4	12.2	228.3
7	1	0.7	0.15	1.4	12.7	256.7
7	1.5	0.8	0.2	1.5	14.5	352.6
7	2.5	0.8	0.2	1.5	15.9	455
7	4	0.8	0.2	1.5	17.6	601.1
7	6	0.9	0.2	1.7	21.1	859
7	10	0.9	0.25	1.7	25.3	1282.7
8	0.5	0.7	0.15	1.4	12.3	222.5
8	0.75	0.7	0.15	1.5	13.1	265
8	1	0.7	0.15	1.5	13.7	298.1
8	1.5	0.8	0.2	1.5	15.5	401
8	2.5	0.8	0.2	1.5	17	519.5
8	4	0.8	0.2	1.5	18.9	688.8
8	6	0.9	0.2	1.7	22.7	987.9
8	10	0.9	0.25	1.7	27.2	1480.1
9	0.5	0.7	0.15	1.5	13.4	263.6
9	0.75	0.7	0.2	1.5	14.4	321.5
9	1	0.7	0.2	1.5	15	361.3
9	1.5	0.8	0.2	1.5	16.8	465.9
9	2.5	0.8	0.2	1.5	18.5	604.7
9	4	0.8	0.2	1.7	21	824.2
9	6	0.9	0.25	1.7	25	1184.6
9	10	0.9	0.25	2	30.5	1783.3
10	0.5	0.7	0.2	1.5	14.3	307.2
10	0.75	0.7	0.2	1.5	15.2	356.6
10	1	0.7	0.2	1.5	15.8	401.3
10	1.5	0.8	0.2	1.5	17.8	519.5
10	2.5	0.8	0.2	1.7	20	696.1
10	4	0.8	0.2	1.7	22.2	922.8
10	6	0.9	0.25	1.7	26.6	1330.3
10	10	0.9	0.25	2	32.5	2006.9
12	0.5	0.7	0.2	1.5	14.7	327.3
12	0.75	0.7	0.2	1.5	15.6	382
12	1	0.7	0.2	1.5	16.3	432.1
12	1.5	0.8	0.2	1.5	18.3	562.3
12	2.5	0.8	0.2	1.7	20.5	759.3
12	4	0.8	0.2	1.7	22.9	1014.8
12	6	0.9	0.25	1.7	27.4	1465
12	10	0.9	0.25	2	33.5	2215.9
14	0.5	0.7	0.2	1.5	15.3	357.7
14	0.75	0.7	0.2	1.5	16.2	419.6
14	1	0.7	0.2	1.5	17	476.1
14	1.5	0.8	0.2	1.7	19.5	642.4
14	2.5	0.8	0.2	1.7	21.5	844.9
14	4	0.8	0.2	1.7	24	1135.7
14	6	0.9	0.25	2	29.4	1685.6
14	10	0.9	0.25	2.2	35.6	2525.9
16	0.5	0.7	0.2	1.5	16	391.6
16	0.75	0.7	0.2	1.5	17	461.1
16	1	0.7	0.2	1.5	17.8	524.7
16	1.5	0.8	0.2	1.7	20.4	710.1
16	2.5	0.8	0.2	1.7	22.6	938.6
16	4	0.8	0.25	1.7	25.4	1295.2
16	6	0.9	0.25	2	30.9	1881.6
16	10	0.9	0.3	2.2	37.7	2870.1
19	0.5	0.7	0.2	1.5	16.7	431.3
19	0.75	0.7	0.2	1.5	17.8	510.4
19	1	0.7	0.2	1.5	18.6	583.1
19	1.5	0.8	0.2	1.7	21.4	791.8
19	2.5	0.8	0.2	1.7	23.7	1054.8
19	4	0.8	0.25	1.7	26.7	1462.5
19	6	0.9	0.25	2	32.5	2127.7
19	10	0.9	0.3	2.2	39.7	3253
21	0.5	0.7	0.2	1.5	17.4	469.5
21	0.75	0.7	0.2	1.5	18.5	556.7
21	1	0.7	0.2	1.7	19.8	656.6
21	1.5	0.8	0.2	1.7	22.4	866.9
21	2.5	0.8	0.25	1.7	25	1185.3
21	4	0.8	0.25	1.7	28	1607.2
21	6	0.9	0.25	2.2	34.5	2375.8
21	10	0.9	0.3	2.2	41.7	3585
22	0.5	0.7	0.2	1.5	18.4	517
24	0.75	0.7	0.2	1.7	20.8	683.4
24	1	0.7	0.2	1.7	21.8	780.6
24	1.5	0.8	0.2	1.7	24.7	1034.3
24	2.5	0.8	0.25	1.7	27.6	1412.8
24	4	0.8	0.25	2	31.6	1963.4
24	6	0.9	0.3	2.2	38.4	2883.2
24	10	0.9	0.3	2.5	46.9	4366
28	0.5	0.7	0.2	1.7	20.5	640.7
28	0.75	0.7	0.2	1.7	21.8	761.6
28	1	0.7	0.2	1.7	22.9	872.6
28	1.5	0.8	0.25	1.7	26.2	1190.7
28	2.5	0.8	0.25	2	29.7	1635.7
28	4	0.8	0.25	2	33.4	2219.1
28	6	0.9	0.3	2.2	40.6	3261.6
28	10	0.9	0.3	2.5	49.7	4951.2
31	0.5	0.7	0.2	1.7	21.2	686.4
31	0.75	0.7	0.2	1.7	22.6	818.1
31	1	0.7	0.2	1.7	23.7	939.2
31	1.5	0.8	0.25	1.7	27.1	1284.4
31	2.5	0.8	0.25	2	30.8	1768.6
31	4	0.8	0.25	2.2	35	2441
31	6	0.9	0.3	2.2	42.1	3539.9
31	10	0.9	0.3	2.5	51.6	5381.9
37	0.5	0.7	0.2	1.7	21.9	744.3
37	0.75	0.7	0.2	1.7	23.4	892.1
37	1	0.7	0.2	1.7	24.6	1028.9
37	1.5	0.8	0.25	1.7	28.1	1412.1
37	2.5	0.8	0.25	2	31.9	1958
37	4	0.8	0.3	2.2	36.5	2760.2
37	6	0.9	0.3	2.2	43.7	3947.4
37	10	0.9	0.3	2.5	53.6	6016.6
