Flat Submersible Pump Cable

What is Flat Submersible Pump Cable

Our flat submersible pump cables are suitable for all types of submersible motor leads (underwater-to-surface connection cables). These cable leads feature user-friendly operation and outstanding waterproof performance. Even in the event of external damage, they ensure the motor remains protected from water ingress, representing a new generation of waterproof cables.



Specifically designed for submersible pumps and irrigation equipment, this flat submersible pump cable exclusively connects surface-mounted wellhead apparatus to submersible pump motors installed within deep wells. As a connection cable for submersible motors (water pumps), it is suitable for permanent underwater operation at water temperatures not exceeding 70°C and water depths not exceeding 600 metres. This flat submersible pump cable is suitable for external installation in dry, damp, or wet environments with moderate mechanical loads, but is not suitable for use in explosive atmospheres.

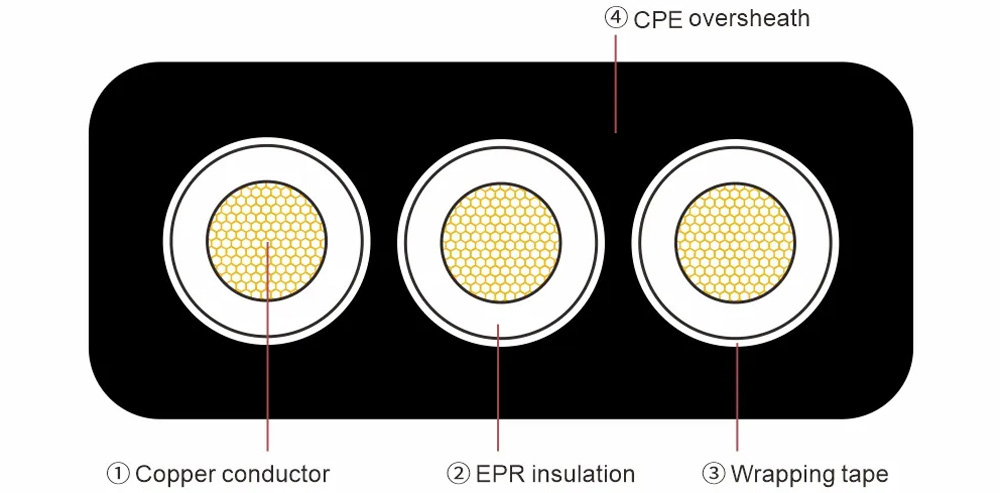

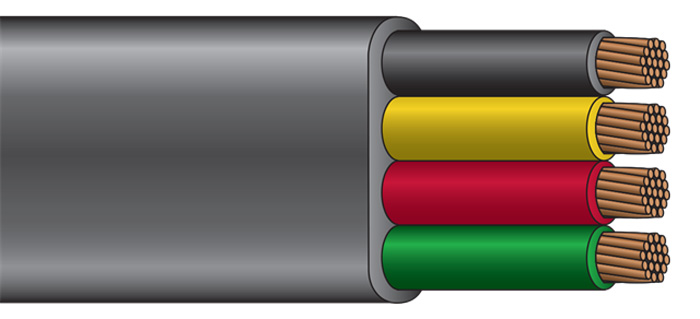

Flat Submersible Pump Cable Construction

Conductor	bare copper wire class 5
Insulation	EPR – Ethylene Propylene Rubber
Sheath	CPE – Chlorinated Polyethylene Rubber

Flat Submersible Pump Cable Specification

AWG Calibe	Number of wires	Insulation Nominal Thickness	Outer Jacket Nominal Thickness	Nominal dimensions		weight
		mm	mm	mm	mm	kg/km
14	19	1.14	1.50	7.19	15.57	155
12	65	1.14	1.50	7.69	17.06	190
10	104	1.14	1.50	8.32	18.97	280
8	168	1.40	2.00	10.92	24.75	476
6	266	1.40	2.00	11.98	27.93	652
4	420	1.40	2.00	13.31	31.92	909
2	665	1.40	2.00	14.99	36.96	1328
1/0	1064	1.65	2.80	19.26	46.57	2135
2/0	1323	1.65	2.80	20.45	50.15	2579
3/0	1666	1.65	2.80	21.86	54.38	3137
4/0	2107	1.65	2.80	23.47	59.22	3833

Flat Submersible Pump Cable Current-Carrying Capacity

Maximum Voltage	AWG Caliber	AMP. 75℃ into the air
600V	14	20
600V	12	25
600V	10	35
600V	8	50
1000V	6	65
1000V	4	85
1000V	2	115
1000V	1/0	115
1000V	2/0	175
1000V	3/0	200
1000V	4/0	230
