Lead Covered Wire

Lead Covered Wire Description:

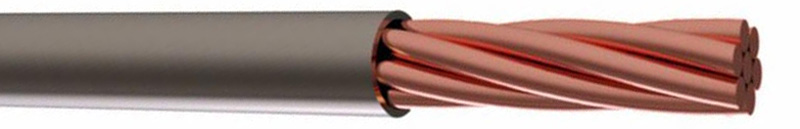

Lead covered wire, also known as lead-sheathed cable or lead-covered earthing cable, used High-conductivity soft-drawn stranded copper wire which made in accordance with BS EN 13601 (previously BS1432-C101), completely encased within a lead sheath (Pb). Lead covered wire Mainly applicable to horizontal grounding for power plant and substation and other occasion where requires low grounding resistance and high acid/alkali corrosion.

Lead Covered Wire Construction:

Metal: bare copper
Shape: circular
Flexibility: stranded, class 2 according to EN 60228 (IEC 60228)
Maximum temperature: 160°C in short circuit
Lead Sheath：Lead quality according to EN 12659

Lead Covered Wire Specification

Nominal cross-section	Max d.c. resistance at 20°C	Ø over lead sheath (approx)	Masse Mass (approx)	Permissible short-circuit current A(1) / Cut-out time s
mm²	Ω/km	mm	kg/km	0,2	0,5	1	2
1 x 10	1830	5,9	250	3 345	2 115	1 495	1 060
1 x 16	1150	6,8	330	5 355	3 385	2 390	1 690
1 x 25	0,727	8,3	490	8 365	5 290	3 740	2 645
1 x 35	0,524	9,3	610	11 710	7 405	5 240	3 700
1 x 50	0,387	10,4	760	16 730	10 580	7 480	5 290
1 x 70	0,268	12,2	1 040	23 420	14 810	10 475	7 405
1 x 95	0,193	13,9	1 340	31 785	20 100	14 215	10 050
1 x 120	0,153	15,7	1 680	40 150	25 390	17 955	12 695
1 x 150	0,124	17,0	1 990	50 185	31 740	22 440	15 870
1 x 185	0,099	19,0	2 470	61 900	39 145	27 681	19 570
1 x 240	0,075	21,4	3 080	80 300	50 780	35 910	25 390
1 x 300	0,060	23,8	3 800	100 370	63 480	44 885	31 740

Lead Covered Wire Application:

This type of Lead-covered earthing cable is suitable for use within areas with extremely high soil contamination and/or petrochemical environments. Lead Covered Stranded Copper Conductors are widely used in various electrical applications. We also ensure that these copper profiles are made available in strict dimensional tolerances with necessary surface treatment like electro-plated tin plating and other options as demanded.
