RZ1MZ1-K / RZ1MZ1-K (AS) Cable

What is RZ1MZ1-K Cable?

RZ1MZ1-K / RZ1MZ1-K AS Cable is a high safety power and general wiring cable with a voltage rating of 600/1000V.  In case of fire, RZ1MZ1-K Cable does not emit toxic or corrosive gases, thereby protecting public health and avoiding any possible damage to electronic equipment. For this reason, its use is highly recommended for public places, in hazardous areas with explosive gas atmospheres (ATEX), and installations in general where the cable is subject to risk of mechanical aggresion. Our RZ1MZ1-K Cable provide the cable sizing for 2-core, 3-core, 4-core, 5-core variants, with the sizes range from 1.5mm2 to 240mm2 as standard, and are available with or without a green/yellow earth core.

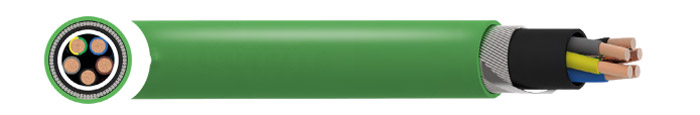

RZ1MZ1-K Cable Construction:

Conductor	Class 5 flexible copper conductor
Insulation	XLPE (Cross-Linked Polyethylene)
Bedding Layer	LSZH (Low Smoke Zero Halogen)
Armour	Galvanized steel wires
Sheath	LSZH (Low Smoke Zero Halogen)
Core  Identification	1core: Black 2core: Blue Brown 3core: Grey Black Brown 3core including earth: Green/Yellow Blue Brown 4 core: Blue Brown  Black Grey 4 core including earth: Green/Yellow Brown Black Grey 5 core including earth:  Green/Yellow  Blue Brown Black Grey G = with green/yellow core X = without green/yellow core
Outer Sheath Colour	Green
Voltage Rating Uo/U	0.6/1kV
Temperature Rating	-40ºC to +90ºC

RZ1MZ1-K Cable Specifications:

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA	NOMINAL DIAMETER UNDER ARMOUR	NOMINAL OVERALL DIAMETER	NOMINAL WEIGHT	MINIMUM BENDING RADIUS
	mm2	mm	mm	kg/km	mm
2	1.5	7.6	12.5	290	125
2	2.5	8.4	13.3	335	135
2	4	9.5	14.4	400	145
2	6	10.6	15.5	480	155
2	10	12.5	18.1	720	185
2	16	14.5	20.1	920	205
2	25	17.8	24.2	1370	245
2	35	20	26.4	1680	265
2	50	19.4	26.1	1835	265
2	70	23.2	29.9	2420	300
2	95	25.8	33.6	3175	340
2	120	29.2	37.4	3920	375
2	150	32.4	40.9	4680	410
2	185	35.6	45.4	5900	455
2	240	41.1	51.4	7485	515
3	1.5	8	13	320	130
3	2.5	8.9	13.9	375	140
3	4	10.1	15	450	150
3	6	11.3	16.2	545	165
3	10	13.3	18.9	830	190
3	16	15.5	21.1	1075	215
3	25	19.1	25.6	1640	255
3	35	21.7	28.2	2050	285
3	50	23.3	30.9	2580	310
3	70	27.5	35.2	3365	355
3	95	30.6	38.8	4170	390
3	120	34.4	42.9	5070	430
3	150	38.5	48.3	6530	485
3	185	42.5	52.7	7735	530
3	240	48.7	59.4	9780	595
4	1.5	8.9	14	365	140
4	2.5	9.9	15	435	150
4	4	11.2	16.3	530	165
4	6	12.5	18.3	735	185
4	10	14.8	20.6	990	210
4	16	17.3	23.7	1405	240
4	25	21.3	27.8	1960	280
4	35	24	30.8	2480	310
4	50	25.7	33.4	3175	335
4	70	30.4	38.6	4235	390
4	95	33.9	42.3	5245	425
4	120	38.6	48.4	6900	485
4	150	42.8	53	8295	530
4	185	47.1	57.7	9850	580
4	240	54.2	65.2	12560	655
5	1.5	9.8	14.9	415	150
5	2.5	10.9	16.7	570	170
5	4	12.4	18.2	705	185
5	6	13.9	19.7	850	200
5	10	16.5	22.8	1265	230
5	16	19.2	25.6	1665	260
5	25	23.8	30.6	2340	310
5	35	26.8	33.7	2970	340
5	50	31.3	39.3	4180	395
5	70	37.1	45.6	5580	460
5	95	41.6	51.5	7390	515
