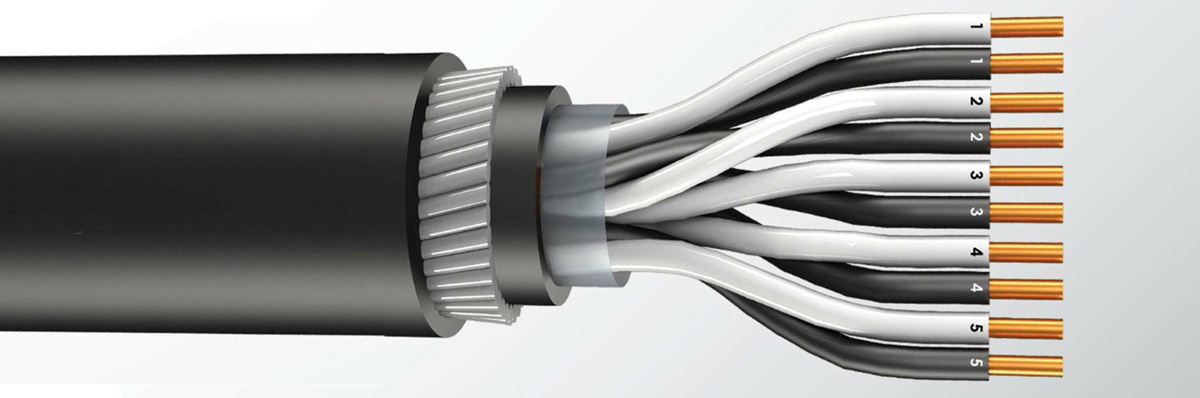

Pilot Cable

What is Pilot Cable?

Pilot cable is used for control, protection, signalling, telecommunications and data transmission purposes associated with power distribution and transmission systems. It transmits low-voltage signals between different points in the network, such as substations, to monitor system integrity and detect faults. These cables are designed with robust insulation and shielding to protect them from the strong electromagnetic fields of nearby high-voltage power cables.

Pilot Cable Construction

Voltage	0.6/1 (1.2)kV
Conductor	Annealed plain copper solid (Class 1)
Insulated	XLPE
Armoured	galvanized steel wires armoured
Sheath	extruded PVC or anti-termite PVC compound sheath

Pilot Cable Specification

Nominal Cross Sectional Area	No. of Pairs	Approx. Conductor Diam.	Nominal Insulation Thickness	Nom.Diameter of Steel Wire	Approx. Overall Diameter of Cable	Approx. Weight of Cable
mm²	No.	mm	mm	mm	mm	kg/km
1.5	5	1.38	0.7	1.25	22.4	875
	10	1.38	0.7	1.6	29.3	1475
	15	1.38	0.7	1.6	32.9	1820
	20	1.38	0.7	2	36.8	2430
2.5	5	1.78	0.7	1.25	24.3	1040
	10	1.78	0.7	1.6	32.2	1820
	15	1.78	0.7	2	37	2550
	20	1.78	0.7	2	41.1	3100

Identification of pairs for Pilot Cable

Pair	A - wire	B - wire	Pair	A - wire	B - wire
1	White	Blue	11	Black	Blue/black stripe
2	White/orange stripe	Orange	12	Black/orange stripe	Orange/black stripe
3	White/green stripe	Green	13	Black/green stripe	Green/black stripe
4	White/brown stripe	Brown	14	Black/brown stripe	Brown/black stripe
5	White/grey stripe	Grey	15	Black/grey stripe	Grey/black stripe
6	Red	Blue/red stripe	16	Yellow	Blue/yellow stripe
7	Red/orange stripe	Orange/red stripe	17	Yellow/orange stripe	Orange/yellow stripe
8	Red/green stripe	Green/red stripe	18	Yellow/green stripe	Green/yellow stripe
9	Red/brown stripe	Brown/red stripe	19	Yellow/brown stripe	Brown/yellow stripe
10	Red/grey stripe	Grey/red stripe	20	Yellow/grey stripe	Grey/yellow stripe
