Type 210 Rubber Mining Cable

Type 210 Mining Cable Description

Type 210 mining cable is a flexible, heavy-duty rubber power cable for mining applications, including hand-held drills and other mobile equipment. With three power cores, a central pilot core for reinforcement and possible monitoring purposes and an outer sheath of heavy-duty polychloroprene (PCP). Manufactured to AS/NZS standards, it is flame retardant, water and oil resistant with a 1.1kV voltage rating as standard.

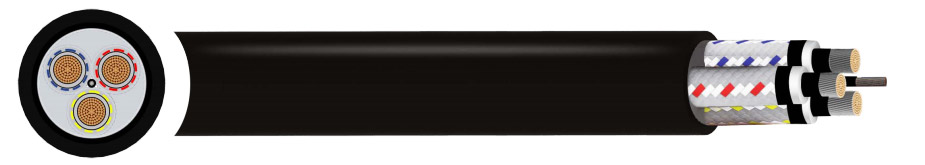

Type 210 Mining Cable Construction

Conductor	Flexible stranded tinned annealed copper
Conductor Screen	Paper Separator
Insulation	EPR (Ethylene Propylene Rubber)
Insulation Screen	Semiconductive elastomer
Composite Screen	Tinned annealed copper braiding interwove with polyester yarn
Pilot Core	EPR covered flexible stranded tinned Copper
Cradle Separator	Semi-conductive  thermosetting  compound
Central Extensible Pilot	EPR (Ethylene Propylene Rubber) insulated stranded tinned copper
Sheath	Heavy duty PCP (Polychloroprene)
Sheath Colour	Black

Type 210 Mining Cable Specifications

NO. CORES	NOMINAL CONDUCTOR AREA	NUMBER/ SIZE STRAND	NOMINAL INSULATION THICKNESS	CORE SCREEN		PILOT CONDUCTOR		THICKNESS OF SHEATH	NOMINAL OVERALL DIAMETER	NOMINAL WEIGHT
	mm2	No/mm	mm	STRAND SIZE / No/mm	AREA OF SCREEN / mm2	STRAND SIZE / No/mm	THICKNESS OF COVERING / mm	mm	mm	kg/100m
3	1.5	30/0.25	1.4	7/0.25	5.2	24/0.20	0.8	3	23.7	83
3	2.5	30/0.25	1.5	7/0.25	5.8	24/0.20	0.8	3	25.1	92

Type 210 Mining Cable Application

Type 210 mining cable is a heavy-duty, flexible power cable designed for use with hand-held boring machines, drills, and other mobile equipment in mining applications, both above and below ground. They are also flexible power leads for pumps and fans and can be used in both underground and surface mine applications for mobile equipment application in various industries. The cables are designed to be flame resistant, oil resistant and water resistant and will be produced to survive the rough hard and hazardous environment of the mining industry.
