Type 240 Rubber Mining Cable

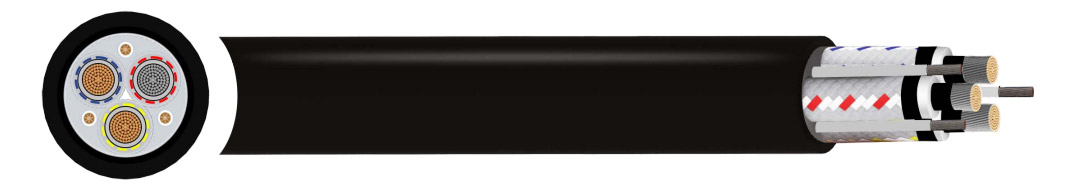

Type 240 Rubber Mining Cable Description:

Type 240 rubber mining cable is a highly flexible rubber-insulated power cable specifically designed for heavy-duty applications in harsh mining environments. It operates within a voltage range of 1.1kV to 11kV （Type 240.1 - 1.1kV ，Type 240.3 - 3.3kV ，Type 240.6 - 6.6kV， Type 240.11 - 11kV）and a temperature range of -25°C to 90°C. All cables feature flexible tinned copper conductors. Each cable comprises three insulated conductors and one monitoring conductor: the monitoring conductor provides reinforcement, enabling longer transmission distances without compromising connectivity. Should the applied current be minimal, the monitoring conductor may also be utilised for operational monitoring. Featuring ethylene propylene rubber (EPR) insulation and a durable chloroprene rubber (PCP) or PVC outer sheath, it offers resistance to oil, abrasion and ultraviolet radiation.

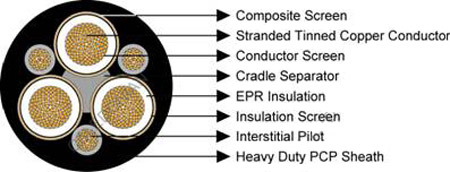

Type 240 Rubber Mining Cable Construction

Conductor	Tinned annealed copper wires
Conductor Screen	1.1kV: Paper separator Other voltages: semi-conductive thermosetting compound
Insulation	EPR (Ethylene Propylene Rubber) type R-EP-90
Insulation Screen	1.1kV: Synthetic tape From 3.3kV: Semi-conductive thermosetting compound
Screen	Tinned copper/polyamide braid
Interstitial  Pilots	EPR covered flexible stranded tinned Copper
Cable Assembly	3x screened power cores with center hand lay up on cradle separator with 3x pilot cores
Cradle Separator	Semi-conductive  thermosetting compound
Sheath	HD-PCP (Heavy Duty Polychloroprene) - extra heavy duty, oil resistance and flame retardant.
Sheath Colour	Black

Type 240 Rubber Mining Cable Specification

NO. CORES	NOMINAL CONDUCTOR AREA SIZE	NUMBER / NOMINAL DIAMETER WIRES	NOMINAL THICKNESS INSULATION	NOMINAL DIAMETER OVER INSULATION	CORE SCREEN SIZE	AREA SIZE SCREEN	STRAND SIZE PILOT	NOMINAL THICKNESS PILOT COVERING	NOMINAL THICKNESS SHEATH	NOMINAL DIAMETER	NOMINAL WEIGHT
	mm2	n x mm	mm2	mm	mm	mm2	mm2	mm	mm	mm	kg/100m
Type 240.1 1.1kV Copper Screened Mining Cable
3+3	6	84x0.3	1.5	6.5	7/0.25	7.2	18/0.30	1	3.8	30	131
3+3	10	77x0.4	1.5	7.7	7/0.25	8.6	27/0.30	1	3.8	32.6	159
3+3	16	126x0.4	1.6	9	7/0.25	9.6	42/0.30	1	4	35.8	202
3+3	25	209x0.4	1.6	10.5	7/0.25	11.3	66/0.30	1.2	4.3	39.7	265
3+3	35	285x0.4	16	12.1	7/0.25	12.4	90/0.30	1.2	4.6	53.6	326
3+3	50	380x0.4	1.7	13.8	7/0.25	14.1	120/0.39	1.2	5	48.4	404
3+3	70	361x0.5	1.8	16.1	7/0.25	16.5	39/0.67	1.2	5.4	54	533
3+3	95	475x0.5	2	17.7	7/0.25	18.2	39/0.67	1.2	6	58.8	635
3+3	120	608x0.5	2.1	20	7/0.25	20.3	42/0.67	1.4	6.4	64.6	775
3+3	150	740x0.5	2.3	22.2	7/0.25	22.3	54/0.67	1.4	6.9	70.3	940
3+3	185	925x0.5	2.5	24.7	7/0.30	30.2	63/0.67	1.4	7.4	77.5	1140
3+3	240	1221x0.5	2.8	27.9	7/0.30	33.6	77/0.67	1.6	8.2	86.1	1410
3+3	300	1525x0.5	3	31	7/0.40	50.1	98/0.67	1.6	8.8	95.2	1775
Type 240.3 3.3kV Copper Screened Mining Cable
3+3	16	126x0.4	3	12.6	7/0.25	13.4	42/0.30	1.4	5.3	46.7	306
3+3	25	209x0.4	3	14.1	7/0.25	14.8	66/0.30	1.4	5.6	50.6	379
3+3	35	285x0.4	3	15.4	7/0.25	15.1	90/0.30	1.4	5.9	54	444
3+3	50	380x0.4	3	16.9	7/0.25	17.5	120/0.39	1.4	6.3	58.1	525
3+3	70	361x0.5	3	18.9	7/0.25	19.6	39/0.67	1.4	6.6	63	656
3+3	95	475x0.5	3	20.1	7/0.25	20.6	39/0.67	1.4	7.1	66.7	750
3+3	120	608x0.5	3	22.2	7/0.30	27.2	42/0.67	1.6	7.4	72.6	910
3+3	150	740x0.5	3	24	7/0.40	39.6	54/0.67	1.6	7.8	78.6	1115
3+3	185	925x0.5	3	26.1	7/0.40	43.1	63/0.67	1.8	8.2	83.8	1280
3+3	240	1221x0.5	3	28.1	7/0.40	46.6	77/0.67	1.8	8.8	90.8	1540
Type 240.6 6.6kV Copper Screened Mining Cable
3+3	16	126x0.4	5	16.6	7/0.25	17.2	42/0.30	1.4	6.4	57.9	440
3+3	25	209x0.4	5	18.1	7/0.25	18.9	66/0.30	1.4	6.7	61.7	521
3+3	35	285x0.4	5	19.4	7/0.25	19.9	90/0.30	1.6	7	65.2	593
3+3	50	380x0.4	5	20.9	7/0.25	21.6	120/0.39	1.6	7.3	69	685
3+3	70	361x0.5	5	22.9	7/0.25	23.4	39/0.67	1.6	7.7	74.3	830
3+3	95	475x0.5	5	24.1	7/0.30	29.7	39/0.67	1.6	8.1	78.3	954
3+3	120	608x0.5	5	25.2	7/0.30	32.2	42/0.67	1.8	8.5	83.5	1111
3+3	150	740x0.5	5	28	7/0.40	45.7	54/0.67	1.8	8.9	89.5	1335
3+3	185	925x0.5	5	30.1	7/0.40	49.3	63/0.67	1.8	9.3	95.1	1515
3+3	240	1221x0.5	5	32.7	7/0.40	52.8	77/0.67	1.8	9.9	101.8	1788
Type 240.11 11kV Copper Screened Mining Cable
3+3	25	209x0.4	7.6	23.5	7/0.25	24.1	66/0.30	2	8.1	76	752
3+3	35	285x0.4	7.6	24.8	7/0.30	30.2	90/0.30	2	8.4	80.1	860
3+3	50	380x0.4	7.6	26.2	7/0.30	32.2	120/0.39	2	8.7	84	961
3+3	70	361x0.5	7.6	28.2	7/0.30	34.6	39/0.67	2	9.1	89.1	1125
3+3	95	475x0.5	7.6	29.5	7/0.40	48.4	39/0.67	2	9.6	94.1	1300
3+3	120	608x0.5	7.6	31.5	7/0.40	51	42/0.67	2.2	9.9	99.9	1470
3+3	150	740x0.5	7.6	33.3	7/0.40	54.5	54/0.67	2.2	10.3	104	1659

Type 240 Rubber Mining Cable Application

Type 240 rubber mining cable for use as flexible feeder cable to machinery or longwall supply and other industrial applications within the mining industry.
