2XS(FL)2Y & A2XS(FL)2Y Cable

2XS(FL)2Y & A2XS(FL)2Y Cable Description:

2XS(FL)2Y and A2XS(FL)2Y cable is single core hv cables , voltages include 26/45kV (Um 52kV), 36/60kV (Um 72.5kV), 64/110kV (Um 123kV), and 76/132kV (Um 145kV). Copper 2XS(FL)2Y cable and Aluminium A2XS(FL)2Y cable both have Class 2 stranded conductors, insulated with XLPE. The XLPE provides for a maximum conductor operating temperature of +90℃ and aids operation at both high and low temperatures.



Designed for buried in-ground installations in cable ducts, these HV cables are provided with dual waterblocking properties either side of the metallic screen, to help minimise and mitigate any water ingress. Longitudinal swellable tapes are there to prevent the capillary action at any joint or termination, whilst additional waterblocking from a copolymer laminate bonded to the outer sheath in effect 'self-heals' microscopic damage from perforations at sheath level.

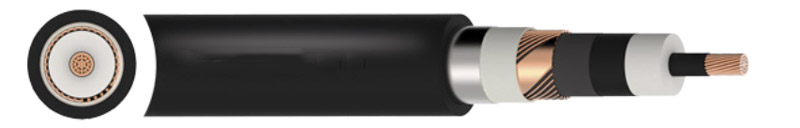

2XS(FL)2Y & A2XS(FL)2Y Cable Construction:

Conductor	copper or aluminum conductor
Conductor Screen	Semi-conductive screen extruded on the phase conductor
Insulation	XLPE (Cross-linked Polyethylene)
Insulation Screen	Semi-conductive screen extruded on insulation
Wrapping	Semi-conductive water swelling tape
Metallic Screen	Copper wires and equalising tape
Wrapping	Semi-conductive water swelling tape
Tape	Longitudinally applied aluminium tape coated with PE copolymer
Sheath	HDPE (High Density Polyethylene)
Sheath Colour	Black

2XS(FL)2Y & A2XS(FL)2Y Cable Specifications:

Voltage	NO. OF CORES	NOMINAL CROSS SECTIONAL AREA	NOMINAL DIAMETER OF CONDUCTOR	INSULATION mm		METALLIC SCREEN mm2		NOMINAL OUTER DIAMETER OF CABLE	NOMINAL WEIGHT	MAXIMUM PULLING FORCE	MINIMUM BENDING RADIUS
		mm2	mm	Nominal thickness	Nominal diamter over	Nominal cross section	Nominal diameter over mm	mm	kg/km	kN	m
2XS(FL)2Y 26/45 (52) kV Cable	1	95RM	11.5	9	30.7	35	34.5	41	2270	4.8	1
	1	120RM	12.8	9	32	35	35.8	42	2550	6	1.1
	1	150RM	14.4	9	33.6	35	37.4	44	2860	7.5	1.1
	1	185RM	15.8	9	35	35	38.8	45	3240	9.3	1.1
	1	240RM	18.5	9	37.7	35	41.5	48	3840	12	1.2
	1	300RM	20.5	9	39.7	35	43.5	50	4500	15	1.3
	1	400RM	23.6	9	43.2	35	47.4	54	5480	20	1.4
	1	500RM	26.4	9	46	35	50.2	57	6600	25	1.4
	1	630RM	30.3	9	50.1	35	54.3	61	8020	31.5	1.5
	1	800RM	34.7	9	54.5	35	58.7	66	9770	40	1.7
	1	1000RM	38.3	9	58.5	35	63.1	71	11910	50	1.8
	1	1200RMS	41.6	9	63.8	50	68.4	77	14260	60	1.9
	1	1400RMS	45.8	9	68	50	72.6	81	16130	70	2
	1	1600RMS	49.6	9	71.8	50	76.4	85	18300	80	2.1
	1	1800RMS	53.2	9	75.4	50	80	89	20650	90	2.2
	1	2000RMS	54.6	9	76.8	50	81.4	91	22200	100	2.3
	1	2500RMS	60	9	83.2	50	88.2	98	27140	100	2.4
	1	3000RMS	68.4	9	91.6	50	96.6	107	33410	100	2.7
2XS(FL)2Y 36/60 (72.5) kV Cable	1	120RM	12.8	10	34	35	37.8	44	2670	6	1.1
	1	150RM	14.4	10	35.6	35	39.4	46	2980	7.5	1.1
	1	185RM	15.8	10	37	35	40.8	47	3370	9.3	1.2
	1	240RM	18.5	10	39.7	35	43.5	50	3990	12	1.3
	1	300RM	20.5	10	41.7	35	45.5	52	4650	15	1.3
	1	400RM	23.6	10	45.2	35	49.4	56	5660	20	1.4
	1	500RM	26.4	10	48	35	52.2	59	6780	25	1.5
	1	630RM	30.3	10	52.1	35	56.3	64	8220	31.5	1.6
	1	800RM	34.7	10	56.5	35	60.7	68	9980	40	1.7
	1	1000RM	38.3	10	60.5	35	65.1	73	12140	50	1.8
	1	1200RMS	41.6	10	65.8	50	70.4	79	14500	60	2
	1	1400RMS	45.8	10	70	50	74.6	83	16360	70	2.1
	1	1600RMS	49.6	10	73.8	50	78.4	87	18580	80	2.2
	1	1800RMS	53.2	10	77.4	50	82	91	20930	90	2.3
	1	2000RMS	54.6	10	78.8	50	83.4	93	22490	100	2.3
	1	2500RMS	60	10	85.2	50	90.2	100	27450	100	2.5
	1	3000RMS	68.4	10	93.6	50	98.6	109	33750	100	2.7
2XS(FL)2Y 64/110 (123) kV Cable	1	150RM	14.4	18	53.4	95	59.2	67	5280	7.5	1.7
	1	185RM	15.8	17	52.2	95	58	66	5450	9.3	1.7
	1	240RM	18.5	16.5	53.5	95	59.3	67	6000	12	1.7
	1	300RM	20.5	15.5	53.5	95	59.3	67	6500	15	1.7
	1	400RM	23.6	14.5	54.6	95	60.4	69	7300	20	1.7
	1	500RM	26.4	14	56.4	95	62.2	71	8350	25	1.8
	1	630RM	30.3	14	60.9	95	66.7	75	9920	31.5	1.9
	1	800RM	34.7	14	65.3	95	71.1	80	11740	40	2
	1	1000RM	38.3	14	68.9	95	74.7	84	13880	50	2.1
	1	1200RMS	41.6	14	73.8	95	79.6	89	16090	60	2.2
	1	1400RMS	45.8	14	78	95	83.8	94	18040	70	2.3
	1	1600RMS	49.6	14	81.8	95	87.6	98	20290	80	2.4
	1	1800RMS	53.2	14	85.4	95	91.2	102	22700	90	2.5
	1	2000RMS	54.6	14	86.8	95	92.6	103	24270	100	2.6
	1	2500RMS	60	14.5	94.2	95	100.4	112	29830	100	2.8
	1	3000RMS	68.4	14.5	102.6	95	108.8	121	35960	100	3
2XS(FL)2Y 76/132 (145) kV Cable	1	185RM	15.8	18	54.8	95	60.6	69	5730	9.3	1.7
	1	240RM	18.5	17	55.5	95	61.3	70	6220	12	1.7
	1	300RM	20.5	16.5	55.9	95	61.7	70	6770	15	1.8
	1	400RM	23.6	16	57.6	95	63.4	72	7620	20	1.8
	1	500RM	26.4	16	60.4	95	66.2	75	8800	25	1.9
	1	630RM	30.3	16	64.9	95	70.7	80	10380	31.5	2
	1	800RM	34.7	16	69.3	95	75.1	84	12250	40	2.1
	1	1000RM	38.3	16	72.9	95	78.7	88	14390	50	2.2
	1	1200RMS	41.6	16	77.8	95	83.6	94	16670	60	2.3
	1	1400RMS	45.8	16	82	95	87.8	98	18620	70	2.5
	1	1600RMS	49.6	16	85.8	95	91.6	102	20910	80	2.6
	1	1800RMS	53.2	16	89.4	95	95.2	106	23350	90	2.7
	1	2000RMS	54.6	16	90.8	95	96.6	107	24900	100	2.7
	1	2500RMS	60	16	97.2	95	103.4	115	30050	100	2.9
	1	3000RMS	68.4	16	105.6	95	111.8	124	36520	100	3.1
A2XS(FL)2Y 26/45 (52) kV Cable	1	95RM	11.3	9	30.5	35	34.3	41	1690	3.3	1
	1	120RM	12.5	9	31.7	35	35.5	42	1810	4.2	1.1
	1	150RM	14.1	9	33.3	35	37.1	43	1940	5.3	1.1
	1	185RM	15.8	9	35	35	38.8	45	2110	6.5	1.1
	1	240RM	17.9	9	37.1	35	40.9	47	2350	8.4	1.2
	1	300RM	20	9	39.2	35	43	49	2590	10.5	1.2
	1	400RM	22.9	9	42.5	35	46.7	53	3040	14	1.3
	1	500RM	25.7	9	45.3	35	49.5	56	3470	17.5	1.4
	1	630RM	29.3	9	49.1	35	53.3	60	4030	22.1	1.5
	1	800RM	33	9	52.8	35	57	64	4650	28	1.6
	1	1000RM	38	9	58.2	35	62.8	71	5570	35	1.8
	1	1200RM	42.5	9	62.7	50	67.3	75	6560	42	1.9
	1	1200RMS	43	9	65.2	50	69.8	78	6840	42	2
	1	1400RMS	45.1	9	67.3	50	71.9	80	7490	49	2
	1	1600RMS	48.5	9	70.7	50	75.3	84	8270	56	2.1
	1	1800RMS	52.7	9	74.9	50	79.5	88	9170	63	2.2
	1	2000RMS	54.5	9	76.7	50	81.3	90	9760	70	2.3
	1	2500RMS	59	9	82.2	50	87.2	97	11270	87.5	2.4
	1	3000RMS	67	9	90.2	50	95.2	105	13690	100	2.6
A2XS(FL)2Y 36/60 (72.5) kV Cable	1	120RM	12.5	10	33.7	35	37.5	44	1920	4.2	1.1
	1	150RM	14.1	10	35.3	35	39.1	45	2070	5.3	1.1
	1	185RM	15.8	10	37	35	40.8	47	2240	6.5	1.2
	1	240RM	17.9	10	39.1	35	42.9	49	2480	8.4	1.2
	1	300RM	20	10	41.2	35	45	52	2750	10.5	1.3
	1	400RM	22.9	10	44.5	35	48.7	55	3190	14	1.4
	1	500RM	25.7	10	47.3	35	51.5	58	3630	17.5	1.5
	1	630RM	29.3	10	51.1	35	55.3	63	4220	22.1	1.6
	1	800RM	33	10	54.8	35	59	67	4860	28	1.7
	1	1000RM	38	10	60.2	35	64.8	73	5800	35	1.8
	1	1200RM	42.5	10	64.7	50	69.3	78	6800	42	1.9
	1	1200RMS	43	10	67.2	50	71.8	80	7070	42	2
	1	1400RMS	45.1	10	69.3	50	73.9	82	7750	49	2.1
	1	1600RMS	48.5	10	72.7	50	77.3	86	8520	56	2.2
	1	1800RMS	52.7	10	76.9	50	81.5	91	9450	63	2.3
	1	2000RMS	54.5	10	78.7	50	83.3	92	10020	70	2.3
	1	2500RMS	59	10	84.2	50	89.2	99	11580	87.5	2.5
	1	3000RMS	67	10	92.2	50	97.2	107	13990	100	2.7
A2XS(FL)2Y 64/110 (123) kV Cable	1	150RM	14.1	18	53.1	95	58.9	67	4350	5.3	1.7
	1	185RM	15.8	17	52.2	95	58	66	4330	6.5	1.7
	1	240RM	17.9	16.5	52.9	95	58.7	67	4490	8.4	1.7
	1	300RM	20	15.5	53	95	58.8	67	4600	10.5	1.7
	1	400RM	22.9	14.5	53.9	95	59.7	68	4820	14	1.7
	1	500RM	25.7	14	55.7	95	61.5	70	5210	17.5	1.8
	1	630RM	29.3	14	59.9	95	65.7	74	5910	22.1	1.9
	1	800RM	33	14	63.6	95	69.4	78	6610	28	2
	1	1000RM	38	14	68.6	95	74.4	84	7540	35	2.1
	1	1200RM	42.5	14	73.1	95	78.9	88	8440	42	2.2
	1	1200RMS	43	14	75.2	95	81	91	8710	42	2.3
	1	1400RMS	45.1	14	77.3	95	83.1	93	9420	49	2.3
	1	1600RMS	48.5	14	80.7	95	86.5	97	10240	56	2.4
	1	1800RMS	52.7	14	84.9	95	90.7	101	11200	63	2.5
	1	2000RMS	54.5	14	86.7	95	92.5	103	11830	70	2.6
	1	2500RMS	59	14.5	93.2	95	99.4	110	13610	87.5	2.8
	1	3000RMS	67	14.5	101.2	95	107.4	119	16180	100	3
A2XS(FL)2Y 76/132 (145) kV Cable	1	185RM	15.8	18	54.8	95	60.6	69	4600	6.5	1.7
	1	240RM	17.9	17	54.9	95	60.7	69	4710	8.4	1.7
	1	300RM	20	16.5	55.4	95	61.2	70	4850	10.5	1.7
	1	400RM	22.9	16	56.9	95	62.7	71	5140	14	1.8
	1	500RM	25.7	16	59.7	95	65.5	74	5640	17.5	1.9
	1	630RM	29.3	16	63.9	95	69.7	79	6370	22.1	2
	1	800RM	33	16	67.6	95	73.4	83	7090	28	2.1
	1	1000RM	38	16	72.6	95	78.4	88	8050	35	2.2
	1	1200RM	42.5	16	77.1	95	82.9	93	9010	42	2.3
	1	1200RMS	43	16	79.2	95	85	95	9270	42	2.4
	1	1400RMS	45.1	16	81.3	95	87.1	97	9990	49	2.4
	1	1600RMS	48.5	16	84.7	95	90.5	101	10830	56	2.5
	1	1800RMS	52.7	16	88.9	95	94.7	105	11850	63	2.6
	1	2000RMS	54.5	16	90.7	95	96.5	107	12460	70	2.7
	1	3000RMS	67	16	104.2	95	110.4	122	16730	100	3.1
	1	2500RMS	59	16	96.2	95	102.4	114	14120	87.5	2.8
	1	3000RMS	67	16	104.2	95	110.4	122	16730	100	3.1
