2XS(F)2Y & A2XS(F)2Y Cable Description:

2XS(F)2Y and A2XS(F)2Y single core cables provide utilities providers and industrial networks alike with a robust solution for power distribution in buried networks. Suitable for the primary distribution of power up to a maximum network voltage of 110kV. Copper 2XS(F)2Y cable and Aluminium A2XS(F)2Y cable both have Class 2 stranded conductors, insulated with XLPE. The XLPE provides for a maximum conductor operating temperature of +90oC and aids operation at both high and low temperatures.

2XS(F)2Y & A2XS(F)2Y Cable Characteristics

Voltage Rating (Uo/U)(Um)	64/110kV (123kV)
Highest Network Voltag	123kV
Operating Temperature	-30°C to +90°C
Short Circuit Temperature	+250°C
Overload Temperature	+130°C (100h per year maximum)
Minimum Installation Temperature	-20°C

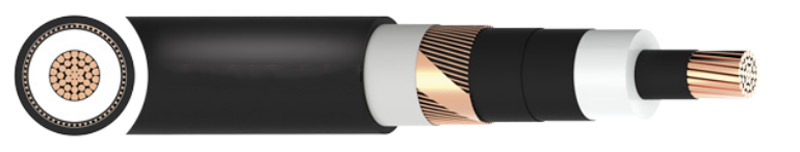

2XS(F)2Y & A2XS(F)2Y Cable Construction

Conductor	Class 2 copper or aluminium conductor
Conductor Screen	Extruded semi-conductive XLPE
Insulation	XLPE (Cross-Linked Polyethylene)
Insulation Screen	Extruded Semi-conductive XLPE (Cross-Linked Polyethylene)
Separator	Water swellable semi-conductive tape
Screen	Copper wire screen, with a counter helix of copper tape
Separator	Water swellable tape
Sheath	HDPE (High Density Polyethylene)
Sheath Colour	Black

2XS(F)2Y & A2XS(F)2Y Cable Specifications

	NO. OF CORES	NOMINAL CROSS SECTIONAL AREA	ELECTRICAL PROTECTION	NOMINAL DIAMETER OF CONDUCTOR	NOMINAL THICKNESS OF NSULATION	NOMINAL DIAMETER OVER INSULATION	NOMINAL OVERALL DIAMETER	NOMINAL WEIGHT	MINIMUM BENDING RADIUS (FIXED)	MAXIMAL FORCE OF DRAGGING (CONDUCTOR PULLING)
		mm2	mm2	mm	mm	mm	mm	kg/km	mm	kN
2XS(F)2Y Copper Conductor	1	150	95	14.1	18	54.9	64.5	4910	970	7.5
	1	185	95	15.7	17	54.5	64.1	5145	960	9.2
	1	240	95	18	16	54.8	64.4	5614	970	12
	1	300	95	20.3	15	55.1	64.7	6085	1000	15
	1	400	95	23	15	57.6	67.4	7075	1010	20
	1	500	95	26.5	15	61.3	71.3	8185	1070	25
	1	630	95	30.3	15	64.5	74.8	9740	1200	31.5
	1	800	95	36.9	15	71.8	82.6	11869	1240	40
A2XS(F)2Y Aluminium Conductor	1	150	95	14.1	18	54.9	64.5	3995	970	4.5
	1	185	95	15.7	17	54.5	64.1	4026	960	5.5
	1	240	95	18	16	54.8	64.4	4156	970	7.2
	1	300	95	20.3	15	55.1	64.7	4263	1000	9
	1	400	95	23	15	57.6	67.4	4746	1010	12
	1	500	95	26.5	15	61.3	71.3	5287	1070	15
	1	630	95	30.3	15	64.5	74.8	5908	1200	18.9
	1	800	95	36.9	15	71.8	82.6	6925	1240	24
	1	1000	95	37.9	15	72.8	84	7409	1260	30
	1	1200*	95	44	15	78	90	8010	1350	36

2XS(F)2Y & A2XS(F)2Y Cable Why Choose Huadong

As a leader in the 2XS(F)2Y and A2XS(F)2Y Cable industry with 30 years of professional manufacturing experience, Huadong Cable has always focused on outstanding quality and innovative technology as its core competitive advantages. With an annual production capacity of over 500,000 kilometres, our products have obtained ISO 9001 quality management system certification and other major global standards certifications such as IEC, GB, and UL. Relying on a professional R&D team of over 200 people, we have provided customised cable solutions for the energy, transportation, and industrial sectors in over 80 countries around the world.
