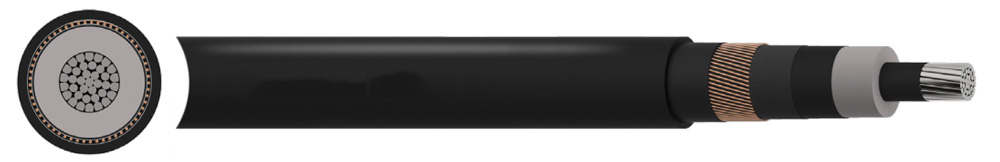

NA2XS2Y Cable

NA2XS2Y Cable Description:

NA2XS2Y Cable is a single core aluminium medium voltage cable with cross-linked polyethylene (XLPE) insulation, copper wire screen, and a polyethylene (PE) oversheath. NA2XS2Y shares the same cable construction as its copper variant, the N2XS2Y cable and are manufactured in accordance with IEC 60502-2 and DIN EN 60228.  NA2XS2Y cable voltage rating is 6/10kV, 12/20kV, or 18/30kV (with the same available for the waterblocked NA2XS(F)2Y and NA2XS(FL)2Y cables).  The robust and UV-resistant oversheath makes this cable ideally suited for fixed outdoor installations where there may be an element of mechanical stress and sunlight exposure.

NA2XS2Y Cable Characteristics:

Voltage Rating Uo/U (Um)	6/10 (12)kV	12/20 (24)kV	18/30 (36)kV
Test Voltage	21kV AC 50Hz (5 mins)	42kV AC 50Hz (5 mins)	63kV AC 50Hz (5 mins)
Temperature Rating	-20°C to +60°C
Permissible Conductor Operating Temperature	+90°C
Permissible Short Circuit Temperature up to 5 sec	250°C
Minimum Bending Radius	15 x overall diameter

NA2XS2Y Cable Construction:

Conductor	Class 2 stranded Aluminium
Conductor Screen	Semi-conductive material
Insulation	XLPE (Cross-linked Polyethylene)
Insulation Screen	Semi-conductive material (bonded)
Longitudinal Waterblock	Semi-conductive water swelling tape
Screen	Copper Wires and Tape
Sheath	MOPE (Medium Density Polyethylene)
Sheath Colour	Red / Black

NA2XS2Y Cable Specifications:

	NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm2		NOMINAL CONDUCTOR DIAMETER mm	NUMBER WIRES CONDUCTOR mm	NOM. THICKNESS SEMI-CON. LAYER mm		NOMINAL INSULATION THICKNESS mm	MINIMUM INSULATION THICKNESS mm	NOMINAL DIAMETER OVER INSULATION mm
		Conductor	Screen			INNER	OUTER
NA2XS2Y 6/10 (12)kV Cable	1	50	16	8.2	7 x 2.90	0.5	0.4	3.4	2.96	16.4
	1	70	16	9.7	19 x 2.18	0.5	0.4	3.4	2.96	17.9
	1	95	16	11.4	19 x 2.55	0.5	0.4	3.4	2.96	19.6
	1	120	16	12.65	19 x 2.90	0.5	0.4	3.4	2.96	20.9
	1	150	25	14.4	19 x 3.16	0.5	0.4	3.4	2.96	22.6
	1	185	25	15.75	37 x 2.55	0.5	0.4	3.4	2.96	24.4
	1	240	25	18.2	37 x 2.90	0.5	0.4	3.4	2.96	26.9
	1	300	25	20.5	61 x 2.55	0.5	0.4	3.4	2.96	29.2
	1	400	35	23	61 x 2.90	0.5	0.4	3.4	2.96	31.7
	1	500	35	26	61 x 3.20	0.5	0.4	3.4	2.96	34.7
	1	630	35	30.2	61 x 3.65	0.5	0.4	3.4	2.96	38.9
NA2XS2Y 12/20 (24)kV Cable	1	50	16	8.2	7 x 2.90	0.5	0.4	5.5	4.85	20.4
	1	70	16	9.7	19 x 2.18	0.5	0.4	5.5	4.85	21.9
	1	95	16	11.4	19 x 2.55	0.5	0.4	5.5	4.85	23.6
	1	120	16	12.65	19 x 2.90	0.5	0.4	5.5	4.85	24.9
	1	150	25	14.4	19 x 3.16	0.5	0.4	5.5	4.85	26.6
	1	185	25	15.75	37 x 2.55	0.5	0.4	5.5	4.85	28.4
	1	240	25	18.2	37 x 2.90	0.5	0.4	5.5	4.85	30.9
	1	300	25	20.5	61 x 2.55	0.5	0.4	5.5	4.85	33.2
	1	400	35	23	61 x 2.90	0.5	0.4	5.5	4.85	35.7
	1	500	35	26	61 x 3.20	0.5	0.4	5.5	4.85	38.7
	1	630	35	30.2	61 x 3.65	0.5	0.4	5.5	4.85	42.9
NA2XS2Y 18/30 (36)kV Cable	1	50	16	8.2	7 x 2.90	0.5	0.4	8	7.1	25.2
	1	70	16	9.7	19 x 2.18	0.5	0.4	8	7.1	26.7
	1	95	16	11.4	19 x 2.55	0.5	0.4	8	7.1	28.4
	1	120	16	12.65	19 x 2.90	0.5	0.4	8	7.1	29.7
	1	150	25	14.4	19 x 3.16	0.5	0.4	8	7.1	31.4
	1	185	25	15.75	37 x 2.55	0.5	0.4	8	7.1	33.2
	1	240	25	18.2	37 x 2.90	0.5	0.4	8	7.1	35.7
	1	300	25	20.5	61 x 2.55	0.5	0.4	8	7.1	38
	1	400	35	23	61 x 2.90	0.5	0.4	8	7.1	40.5
	1	500	35	26	61 x 3.20	0.5	0.4	8	7.1	43.5
	1	630	35	30.2	61 x 3.65	0.5	0.4	8	7.1	47.7
